What Is the 12V-2x6 Connector and Why Does It Matter for Gaming PCs in 2025?
If you've built a PC in the last couple of years, you might have heard about the controversial 12VHPWR connector that debuted with NVIDIA’s RTX 40-series GPUs. It was a compact, high-wattage cable designed for modern GPUs, but it came with a serious flaw: if not inserted just right, it could overheat, melt, or even damage your graphics card.
In 2025, that connector is being replaced with a safer and more reliable standard: 12V-2x6. Whether you're building a high-end rig or simply upgrading your GPU, this new standard is something you need to know about.
What Is 12V-2x6?

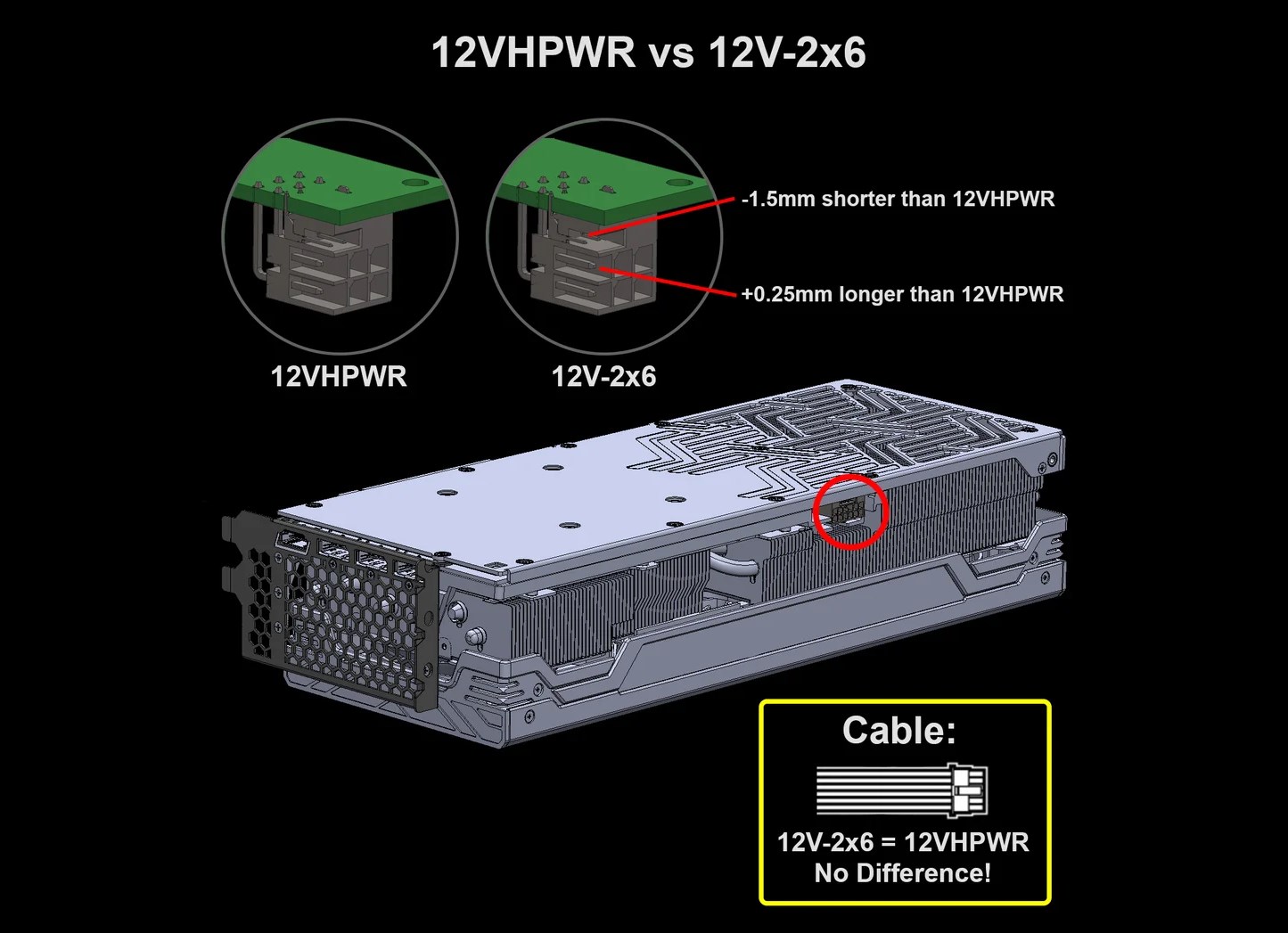

The 12V-2x6 is the updated power connector standard introduced by PCI-SIG, the group that sets hardware interface standards like PCIe. While it looks nearly identical to the 12VHPWR (same size, same pin layout), it has been redesigned internally for better durability, safer current delivery, and easier installation.
Key upgrades include:
- Improved pin design to reduce the risk of overheating due to poor contact
- Stricter cable specs for flexibility and insulation
- Better detection by GPUs to confirm full insertion before power draw ramps up
This is not just a minor revision. The changes were significant enough for PCI-SIG and NVIDIA to rebrand the connector to avoid confusion and to restore trust after the issues seen with earlier implementations.
Why the Change Was Needed
When 12VHPWR launched with the RTX 4090 and other 40-series GPUs, it quickly became a problem point. Many users experienced melted connectors due to improper seating or poor-quality cables. The connector’s compact size and high power rating (up to 600 watts) left very little room for error.
Manufacturers scrambled to respond, improving cable quality and advising users to double-check installation, but the damage to confidence had already been done.
12V-2x6 fixes the root issues by introducing:
- Stronger signal pins for detecting power engagement
- Reduced thermal resistance across contacts
- Mandatory PSU-side compliance for ATX 3.1 support
In short, it is safer, smarter, and better suited for the high-wattage demands of modern GPUs.
Which GPUs Use 12V-2x6?
Most NVIDIA RTX 50-series GPUs now ship with 12V-2x6 connectors, including the RTX 5070, 5080, and 5090. These cards continue to push the limits of power efficiency and performance, so a stable connector is essential.
AMD’s RX 9000-series cards currently stick with traditional 8-pin or dual 8-pin connectors, but some future models, especially workstation or enthusiast-class GPUs, may adopt 12V-2x6 as the ATX 3.1 standard becomes more widespread.
What About Power Supplies?
To take full advantage of 12V-2x6, your PSU should be ATX 3.1 compliant. This means it includes a native 12V-2x6 cable, not just an adapter, and is built to handle modern power delivery features like transient load spikes and accurate reporting.
Look for units from brands like:
Using a high-quality PSU is especially important if you're running a GPU like the RTX 5080 or 5090, where power draw can fluctuate rapidly depending on load and frame generation.
Do You Still Need to Be Careful?
Yes, but not nearly as much. The 12V-2x6 connector is more tolerant of slight misalignment's, and most cables now have built-in click feedback so you know when it's fully seated. Still, good cable management is key. Avoid sharp bends near the plug, make sure it’s properly secured, and don’t force anything into place.
Should You Upgrade Just for 12V-2x6?
If you're buying a new GPU or PSU in 2025, the answer is yes. You will likely end up with a 12V-2x6 setup by default. There is no need to rip out your existing components if they work well, but if you're already upgrading, it's worth making sure your build supports the new standard.
It adds peace of mind, cleaner cable runs, and compatibility with the power demands of future GPUs.
Final Thoughts
The 12V-2x6 connector is not just a patch. It is a necessary evolution in how we deliver power to modern graphics cards. With GPUs now pulling well over 300 watts under load, reliability matters more than ever.
If you’re planning a custom PC build, especially one featuring RTX 50-series cards, make sure your power supply is up to the task. Check out our custom PC builder to configure a fully compatible system with 12V-2x6 support, or browse our prebuilt gaming PCs ready for the next generation of performance.
Tarl @ Gamertech
